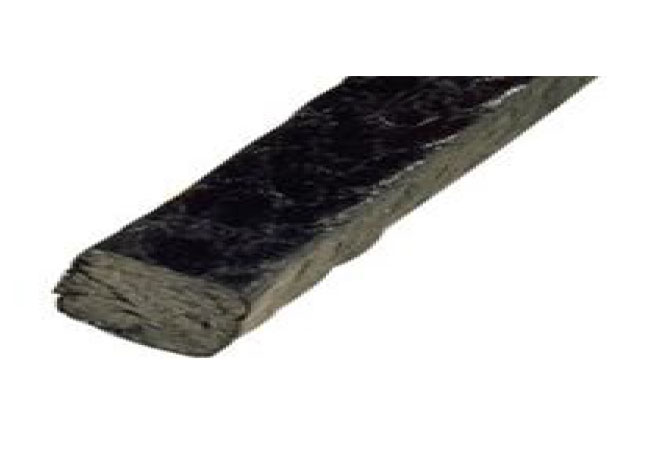

SE RI-18 Flexible Graphite Packing

This is braided from Flexiblee Graphite fibers. This packing is non-corrosive, self lubricating and gives frictionless sealing providing good life to the packing and Sleeve

Service Conditions:

Acids, Alkalis, Oils, recommended for High Pressure Steam applications. Not suitable for Nitric acid. R-181 will have Inconel wire reinforced

PH 2-14
Temp oC -200 to +600
Pr. Bar 300
Velocity 0-15 m/s
Density 0.9 to 1.3 g/cm2
Size mm 3 to 50
