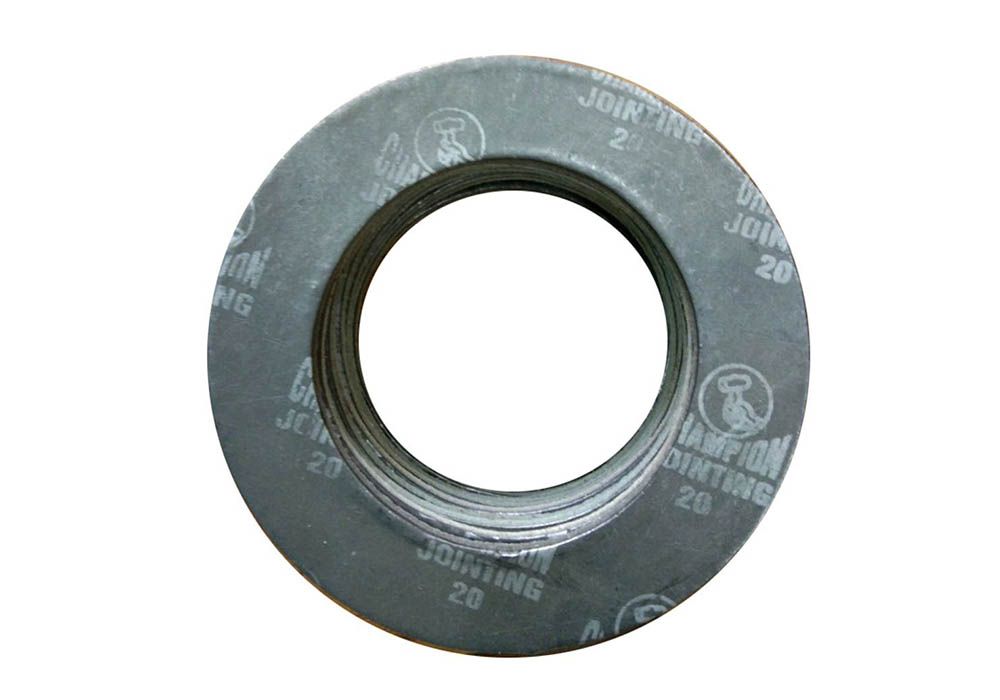

We are one of the leading manufacturers of compressed Non-Asbetos. Jointing Sheet which fille the space between two or more matting surface, generally to prevent leakage from or into the joint objects while under compression.
Rex Jointing sheets conforms the property requirements of international standards & has many I desirable properties to withstand high compressive load. It comes in many different design based on industrial usage, budget, chemical contact & physical parameters.
We produce different types of jointing sheet for high / Medium / Low - Pressure / Temperature & Acidic environments.
Standard thickness :
0.4; 0.5; 0.8; 1.0; 1.5; 2.0; 3.0; 4.0; 5.0mm
Standard Size :1.5 x 1.0m, 1.5 x 2.0m
1.5 x 3.0m and 1.5 x4.0m
With wire insertion
0.8; 1.0; 1.5; 2.0; 3.0, 4.0; 5.0mm
Thickness tolerances :0.1-0,8 K 0.1 mm
1,0 - 5.0 K 10%

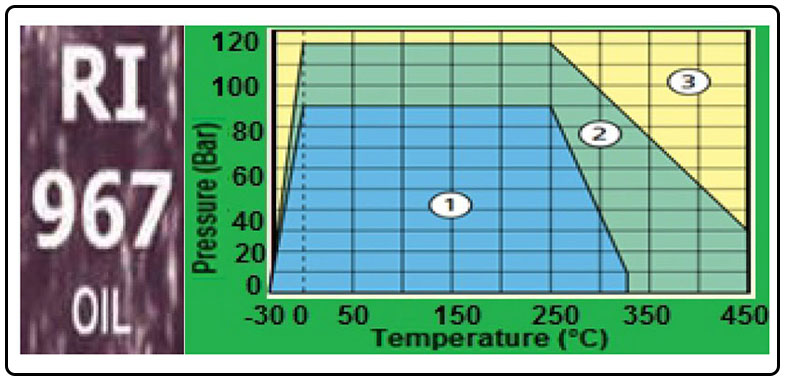

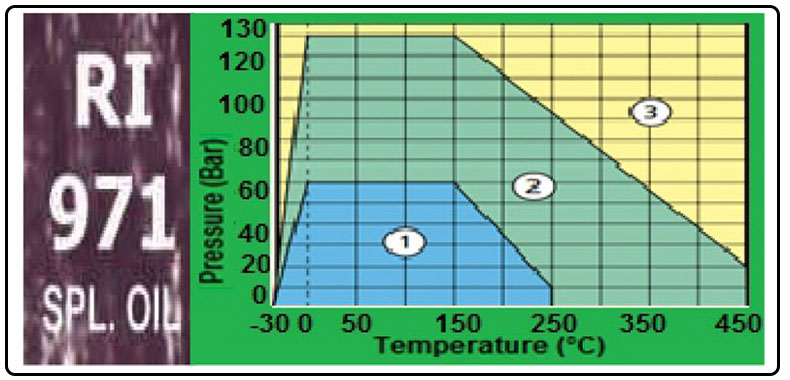

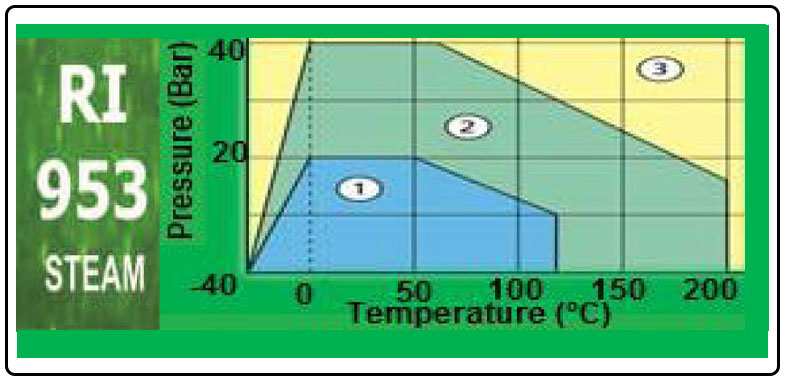

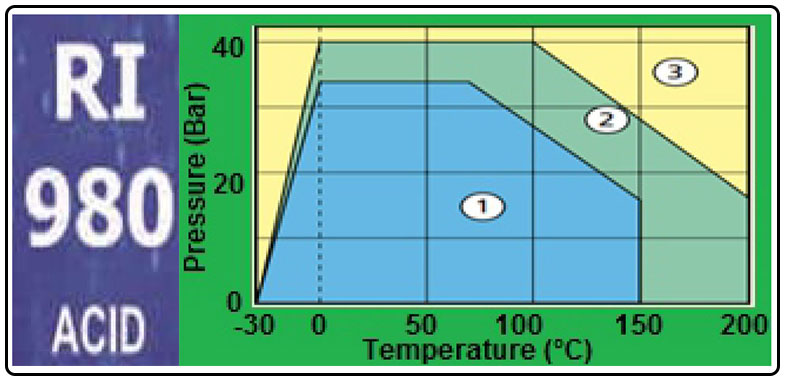

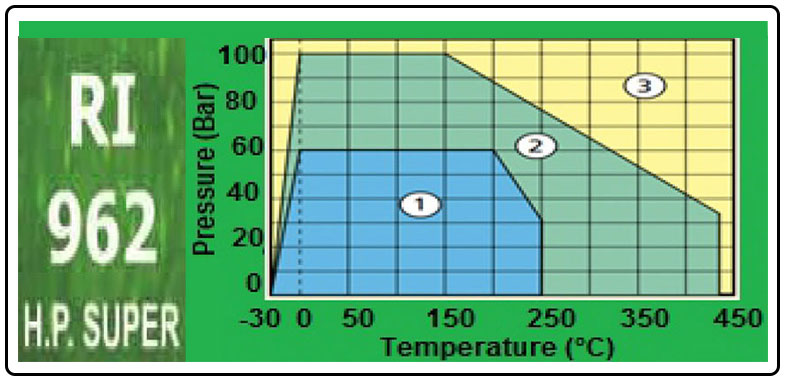

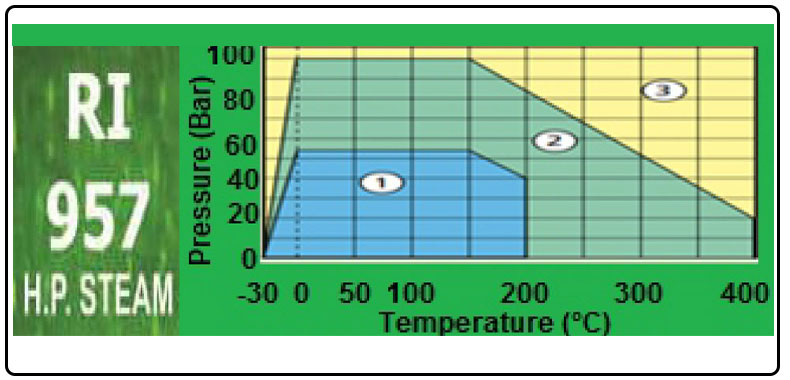

Pressure Vs Temperature Graph
1 - Suitable area (even for steam, application)
2 - Suitable extended area, technical advice is recommended
3 - for this area technical consultation is mandatory
| CHEMICAL | RI-953 STEAM | RI-957 H.P. STEAM | RI-962 H.P. SUPER | RI-967 OIL | RI-971 SPL OIL | RI-980 ACID |
|---|---|---|---|---|---|---|
| Acetic acid 100% | C | A | A | A | A | A |
| Acetone | B | B | B | B | B | B |
| Acetylene | A | A | A | A | A | A |
| Air | A | A | A | A | A | A |
| Aluminium Chloride | A | A | A | A | A | A |
| Ammonia | B | A | A | A | A | A |
| Ammonium hydrogenphospate | B | A | A | A | A | A |
| Barium chloride | A | A | A | A | A | A |
| Benzene | B | A | A | A | A | A |
| Boric acid | B | A | A | A | A | A |
| Calcium hydroxide | B | A | A | A | A | A |
| Carbon dioxide | A | A | A | A | A | A |
| Copper sulphate | A | A | A | A | A | A |
| Crude Oil | B | A | A | A | A | A |
| Cyclohexanol | B | A | A | A | A | A |
| Cyklohexanon | C | B | B | B | B | B |
| Di-butyl phtalate | A | A | A | A | A | A |
| Ethyl ethe | A | A | A | A | A | A |
| Ethylene glycol Formic acid 10% | B | A | A | A | A | A |
| Glycerine | A | A | A | A | A | A |
| Hydraulic oil (mineral) | B | A | A | A | A | A |
| Hydrogen chloride dry | B | A | A | A | A | A |
| Hydrochlorid acid 20% | C | B | B | B | B | B |
| Chlorine dry | B | A | A | A | A | A |
| Chloroform | C | B | B | B | B | B |
| Iso-octance | B | A | A | A | A | A |
| Kerosene | B | A | A | A | A | A |
| Methylene chloride | C | C | C | C | C | C |
| Natural gas | A | A | A | A | A | A |
| Nitric acid 20% | C | C | C | C | C | C |
| Nitrogen | A | A | A | A | A | A |
| Petrol | B | A | A | A | A | A |
| Petroleum | B | A | A | A | A | A |
| Phenol | C | C | C | C | C | B |
| Potable water | A | A | A | A | A | A |
| Potassium cyanide | B | A | A | A | A | A |
| Potassium iodide | A | A | A | A | A | A |
| Saturated steam | B | A | A | A | A | A |
| Silicon oil | B | A | A | A | A | A |
| Sodium carbonate | A | A | A | A | A | A |
| Sodium hydrogen carbonate | B | A | A | A | A | A |
| Sodium hydrogen sulphite | B | A | A | A | A | A |
| Sodium hydroxide | B | B | B | B | B | B |
| Sodium chloride | A | A | A | A | A | A |
| Sodium sulphate | A | A | A | A | A | A |
| Sugar | A | A | A | A | A | A |
| Sulphuric acid 65% | C | C | C | C | C | C |
| Tartaric acid Tetrachlormethan | A | A | A | A | A | A |
| Tetrachlormethane | C | B | B | B | B | B |
| Toluene | C | A | A | A | A | A |
| Transformer oil | B | A | A | A | A | A |
| Turpentine | A | A | A | A | A | A |
| Xylene | B | A | A | A | A | A |
